型 号 |
最小加工径 |
|
|
|
|
|
|
刀片 |
刀垫 |
中心螺丝 |
压板 |
压板螺丝 |
扳手 |
出水孔 |
|

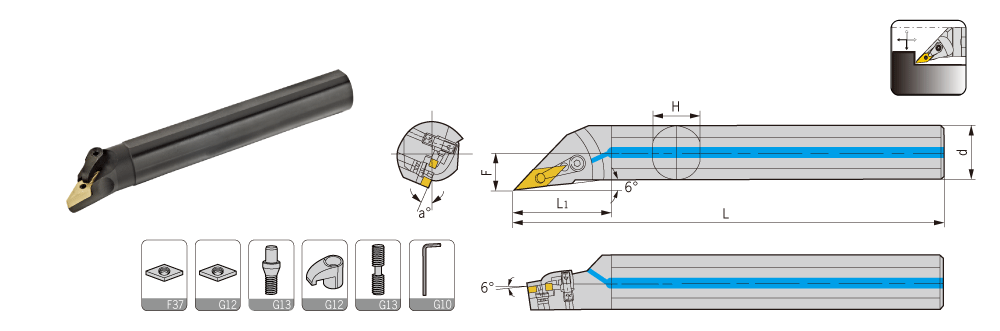

Specification |
Min dia |
d |
F |
L |
L1 |
H |
a |
Insert |
Shim |
Center screw |
Clamp |
Clamp screw |
Wrench |
Water hole |
|
S20Q-MVXNR/L16-G6 |
27 |
20 |
14 |
180 |
34 |
18 |
15° |
VN..1604.. |
- |
MX0510 |
MY0621 |
ML0620 |
L02,L03 |
- |
|
S25R-MVXNR/L16-G6 |
32 |
25 |
17 |
200 |
43 |
23 |
12° |
VN..1604.. |
- |
MX0510 |
MY0621 |
ML0625 |
L02,L03 |
- |
|
S32S-MVXNR/L16-G6 |
42 |
32 |
23 |
250 |
54
|
30 |
17° |
VN..1604.. |
MV1603 |
MX0513 |
MY0621 |
ML0625 |
L02,L03 |
- |
|
H20Q-MVXNR/L16-G6 |
27 |
20 |
14 |
180 |
34 |
18 |
15° |
VN..1604.. |
- |
MX0510 |
MY0621 |
ML0625 |
L02,L03 |
- |
|
H25R-MVXNR/L16-G6 |
32 |
25 |
17 |
200 |
43
|
23 |
12° |
VN..1604.. |
- |
MX0510 |
MY0621 |
ML0625 |
L02,L03 |
- |
|
A20Q-MVXNR/L16-G6 |
27 |
20 |
14 |
180 |
34 |
18 |
15° |
VN..1604.. |
- |
MX0510 |
MY0621 |
ML0620 |
L02,L03 |
√ |
|
A25R-MVXNR/L16-G6 |
32 |
25 |
17 |
200 |
43
|
23 |
12° |
VN..1604.. |
- |
MX0510 |
MY0621 |
ML0625 |
L02,L03 |
√ |
| 适用 Suitable:德克刀片 DEREK Insert |
|
