Back-Boring Tool You Are Here : Back-Boring Tool

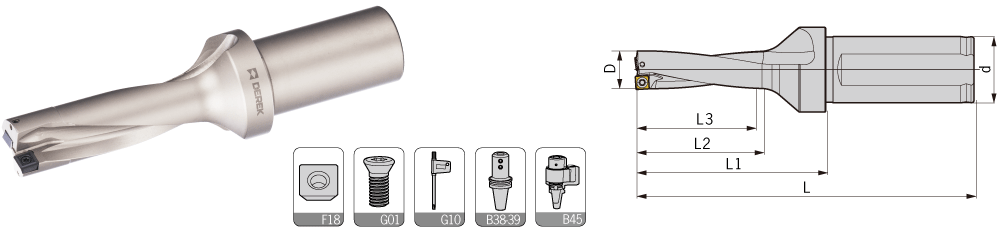

KSD-S Indexable Insert Drill (3xD)
型号 刃数                                                刀片 刀片螺钉 旗形扳手    重量

 Specifcation

 Teeth D d L1 L2 L3 L Insert Insert screw Wrench

Weight

KSD-		  C25-150-3-S 2 15 25 72 48 45 128 SPMT050204 M020W040 Q08B 0.32
 C25-155-3-S 2 15.5 25 72 48 45 128 SPMT060204 M022W050 Q08B 0.32
 C25-160-3-S 2 16 25 75 51 48 131 SPMT060204 M022W050 Q08B 0.33
 C25-165-3-S 2 16.5 25 75 51 48 131 SPMT060204 M022W050 Q08B 0.34
 C25-170-3-S 2 17 25 78 54 51 134 SPMT060204 M022W050 Q08B 0.34
 C25-175-3-S 2 17.5 25 78 54 51 134 SPMT060204 M022W050 Q08B 0.35
 C25-180-3-S 2 18 25 81 57 54 137 SPMT060204 M022W050 Q08B 0.36
 C25-185-3-S 2 18.5 25 81 57 54 137 SPMT060204 M022W050 Q08B 0.36
 C25-190-3-S 2 19 25 84 60 57 140 SPMT060204 M022W050 Q08B 0.37
 C25-195-3-S 2 19.5 25 84 60 57 140 SPMT060204 M022W050 Q08B 0.37
 C32-200-3-S 2 20 32 91 64 60 151 SPMT060204 M022W050 Q08B 0.57
 C32-205-3-S 2 20.5 32 91 64 60 151 SPMT060204 M022W050 Q08B 0.57
 C32-210-3-S 2 21 32 94 67 63 154 SPMT060204 M022W050 Q08B 0.58
 C32-215-3-S 2 21.5 32 94 67 63 154 SPMT060204 M022W050 Q08B 0.58
 C32-220-3-S 2 22 32 97 70 66 157 SPMT07T308 M025W070 Q08B 0.60
 C32-225-3-S 2 22.5 32 97 70 66 157 SPMT07T308 M025W070 Q08B 0.60
 C32-230-3-S 2 23 32 100 73 69 160 SPMT07T308 M025W070 Q08B 0.61
 C32-235-3-S 2 23.5 32 100 73 69 160 SPMT07T308 M025W070 Q08B 0.62
 C32-240-3-S 2 24 32 103 76 72 163 SPMT07T308 M025W070 Q08B 0.64
 C32-245-3-S 2 24.5 32 103 76 72 163 SPMT07T308 M025W070 Q08B 0.65
 C32-250-3-S 2 25 32 106 79 75 166 SPMT07T308 M025W070 Q08B 0.66
 C32-255-3-S 2 25.5 32 106 79 75 166 SPMT07T308 M025W070 Q08B 0.66
 C32-260-3-S 2 26 32 109 82 78 169 SPMT07T308 M025W070 Q08B 0.70
 C32-265-3-S 2 26.5 32 109 82 78 169 SPMT07T308 M025W060 Q08B 0.70
 C32-270-3-S 2 27 32 112 85 81 172 SPMT07T308 M025W070 Q08B 0.71
 C32-275-3-S 2

27.5

 32 112 85 81 172 SPMT07T308 M025W070 Q08B 0.73
 C32-280-3-S 2 28 32 115 88 84 175 SPMT090408 M035W090 Q15B 0.75
 C32-285-3-S 2 28.5 32 115 88 84 175 SPMT090408 M035W090 Q15B 0.76
 C32-290-3-S 2 29 32 118 91 87 178 SPMT090408 M035W090 Q15B 0.77
 C32-300-3-S 2 30 32 121 94 90 181 SPMT090408 M035W090 Q15B 0.81
 C32-310-3-S 2 33 32 127 97 93 187 SPMT090408 M035W090 Q15B 0.84
 C32-320-3-S 2 32 32 130 100 96 190 SPMT090408 M035W090 Q15B 0.88
 C32-330-3-S 2 33 32 133 103 99 193 SPMT090408 M035W090 Q15B 0.93
适用Suitable:德克或特固克刀片 DEREK Or TAEGUTEC Insert
