Back-Boring Tool You Are Here : Back-Boring Tool

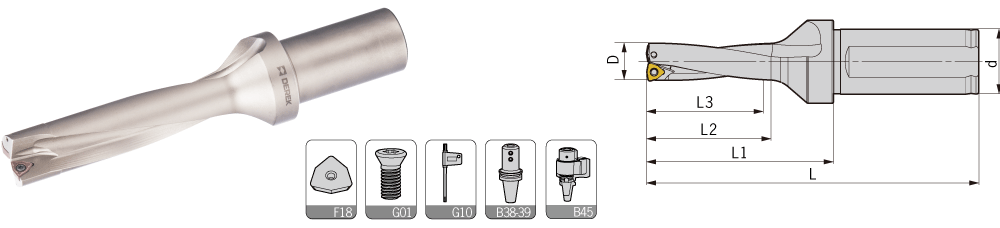

KSD-W Indexable Insert Drill (4xD)
型号 刃数                                                刀片 刀片螺钉 旗形扳手    重量

 Specifcation

 Teeth D d L1 L2 L3 L Insert Insert screw Wrench

Weight

KSD-		  C40-400-4-W 2 40 40 196 166 160 266 WCMX080412 M040W090 Q15B 1.78
 C40-410-4-W 2 41 40 200 170 164 270 WCMX080412 M040W090 Q15B 1.88
 C40-420-4-W 2 42 40 204 174 168 274 WCMX080412 M040W090 Q15B 1.92
 C40-430-4-W 2 43 40 208 178 172 278 WCMX080412 M040W090 Q15B 2.04
 C40-440-4-W 2 44 40 212 182 176 282 WCMX080412 M040W090 Q15B 2.20
 C40-450-4-W 2 45 40 216 186 180 286 WCMX080412 M040W090 Q15B 2.32
 C40-460-4-W 2 46 40 220 190 184 290 WCMX080412 M040W090 Q15B 2.38
 C40-470-4-W 2 47 40 224 194 188 294 WCMX080412 M040W090 Q15B 2.41
 C40-480-4-W 2 48 40 228 198 192 298 WCMX080412 M040W090 Q15B 2.53
 C40-490-4-W 2 49 40 232 232 196 302 WCMX080412 M040W090 Q15B 2.56
 C40-500-4-W 2 50 40 236 204 200 306 WCMX080412 M040W090 Q15B 2.69
 C40-510-4-W 2 51 40 240 240 204 310 WCMX080412 M040W090 Q15B 2.83
 C40-520-4-W 2 52 40 244 244 208 314 WCMX080412 M040W090 Q15B 2.84
 C40-530-4-W 2 53 40 248 248 212 318 WCMX080412 M040W090 Q15B 3.05
 C40-540-4-W 2 54 40 252 252 216 322 WCMX080412 M040W090 Q15B 3.23
 C40-550-4-W 2 55 40 256 256 220 326 WCMX080412 M040W090 Q15B 3.28
 C40-560-4-W 2 56 40 260 260 224 330 WCMX080412 M040W090 Q15B 3.43
 C40-570-4-W 2 57 40 264 264 228 334 WCMX080412 M040W090 Q15B 3.63
 C40-580-4-W 2 58 40 268 268 232 338 WCMX080412 M040W090 Q15B 3.77
 C40-590-4-W 2 59 40 272 272 236 342 WCMX080412 M040W090 Q15B 3.82
 C40-600-4-W 2 60 40 276 276 240 346 WCMX080412 M040W090 Q15B 3.97
 C40-610-4-W 2 61 40 280 280 244 350 WCMX080412 M040W090 Q15B 4.10
适用Suitable:德克或住友刀片DEREK Or SUMITOMO Insert
