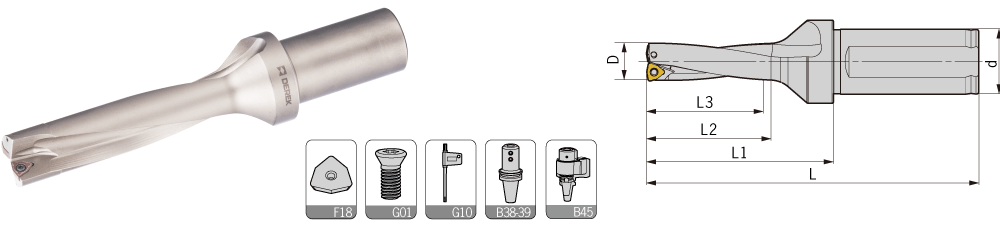

KSD-W Indexable Insert Drill (4xD)
型号 刃数                                                刀片
刀片螺钉		 旗形扳手    重量

 Specifcation

 Teeth D d L1 L2 L3 L Insert Insert screw Wrench

Weight

KSD-		  C25-160-4-W 2 16 25 92 58 64 148 WCMX030208 M025W050 Q08B 0.35
 C25-165-4-W 2 16.5 25 92 58 64 148 WCMX030208 M025W050 Q08B 0.35
 C25-170-4-W 2 17 25 96 72 68 152 WCMX030208 M025W060 Q08B 0.35
 C25-175-4-W 2 17.5 25 96 72 68 152 WCMX030208 M025W060 Q08B 0.36
 C25-180-4-W 2 18 25 100 76 72 156 WCMX030208 M025W060 Q08B 0.37
 C25-185-4-W 2 18.5 25 100 76 72 156 WCMX030208 M025W060 Q08B 0.38
 C25-190-4-W 2 19 25 104 80 76 160 WCMX030208 M025W060 Q08B 0.39
 C25-195-4-W 2 19.5 25 104 80 76 160 WCMX030208 M025W060 Q08B 0.39
 C32-200-4-W 2 20 32 111 84 80 171 WCMX040208 M025W070 Q08B 0.58
 C32-205-4-W 2 20.5 32 111 84 80 171 WCMX040208 M025W070 Q08B 0.59
 C32-210-4-W 2 21 32 115 88 84 175 WCMX040208 M025W070 Q08B 0.60
 C32-215-4-W 2 21.5 32 115 88 84 175 WCMX040208 M025W070 Q08B 0.61
 C32-220-4-W 2 22 32 119 92 88 179 WCMX040208 M025W070 Q08B 0.63
 C32-225-4-W 2 22.5 32 119 92 88 179 WCMX040208 M025W070 Q08B 0.63
 C32-230-4-W 2 23 32 123 96 92 183 WCMX040208 M025W070 Q08B 0.65
 C32-235-4-W 2 23.5 32 123 96 92 183 WCMX040208 M025W070 Q08B 0.66
 C32-240-4-W 2 24 32 127 100 96 187 WCMX040208 M025W070 Q08B 0.67
 C32-245-4-W 2 24.5 32 127 100 96 187 WCMX040208 M025W070 Q08B 0.68
 C32-250-4-W 2 25 32 131 104 100 191 WCMX050308 M030W070 Q08B 0.69
 C32-255-4-W 2 25.5 32 131 104 100 191 WCMX050308 M030W070 Q08B 0.71
 C32-260-4-W 2 26 32 135 108 104 195 WCMX050308 M030W070 Q08B 0.75
 C32-265-4-W 2 26.5 32 135 108 104 195 WCMX050308 M030W070 Q08B 0.75
 C32-270-4-W 2 27 32 139 112 108 199 WCMX050308 M030W070 Q08B 0.77
 C32-280-4-W 2 28 32 143 116 112 203 WCMX050308 M030W070 Q08B 0.81
 C32-290-4-W 2 29 32 147 120 116 207 WCMX050308 M030W070 Q08B 0.84
 C32-300-4-W 2 30 32 151 124 120 211 WCMX050308 M030W070 Q08B 0.87
 C32-310-4-W 2 31 32 158 128 124 218 WCMX06T308 M035W090 Q15B 0.91
 C32-320-4-W 2 32 32 162 132 128 222 WCMX06T308 M035W090 Q15B 0.97
 C32-330-4-W 2 33 32 166 136 132 226 WCMX06T308 M035W090 Q15B 1.00
 C32-340-4-W 2 34 32 170 140 136 230 WCMX06T308 M035W090 Q15B 1.03
 C32-350-4-W 2 35 32 174 144 140 234 WCMX06T308 M035W090 Q15B 1.08
 C32-360-4-W 2 36 32 178 148 144 238 WCMX06T308 M035W090 Q15B 1.12
 C32-370-4-W 2 37 32 182 152 148 242 WCMX06T308 M035W090 Q15B 1.19
 C32-380-4-W 2 38 32 186 156 152 246 WCMX06T308 M035W090 Q15B 1.23
 C32-390-4-W 2 39 32 190 160 156 250 WCMX06T308 M035W090 Q15B 1.25
适用Suitable:德克或住友刀片DEREK Or SUMITOMO Insert
