FEATURED BORING You Are Here : FEATURED BORING

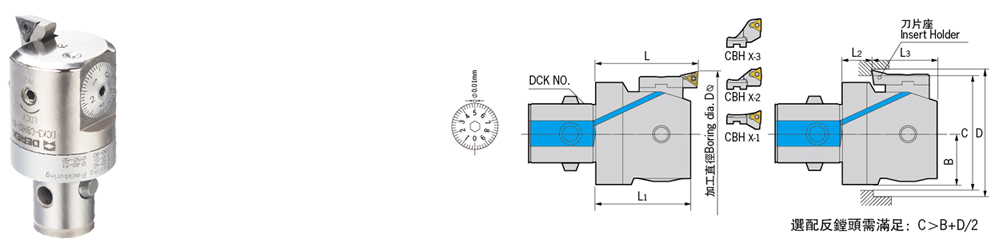

CBH Finish Boring Tool
型号 正鏜 Boring 范围 反鏜 Back boring 范围 刀片座 刀片 螺釘 扳手    重量
D L1 L Range B L2 L3 Range Insert holder Insert Screw Wrench

Weight
  29.5 32.5 20-26 10 10.5 19 - CBH1-1       0.06
DCK1-CBH20-36 29.5 32.5 25-31 10 10.5 19 - CBH1-2       0.06
  29.5 32.5 30-36 10 10.5 19 30-36 CBH1-3       0.06
  32.5 35.5 25-33 12.5 11.5 21 36-40 CBH2-1       0.12
DCK1-CBH20-36 32.5 35.5 32-40 12.5 11.5 21 36-40 CBH2-2 TPGH     0.12
  32.5 35.5 39-47 12.5 11.5 21 39-47 CBH2-3 080202 M020W050 Q06 0.12
  35 40 32-42 16 10 25 - CBH3-1       0.20
DCK3-CBH32-60 35 40 41-51 16 10 25 46-51 CBH3-2       0.20
  35 40 50-60 16 10 25 50-60 CBH3-3       0.20
  43 47 41-54 20 14 29 - CBH4-1       0.39
DCK4-CBH41-74 43 47 50-63 20 14 29 53-63 CBH4-2       0.39
  43 47 61-74 20 14 29 61-74 CBH4-3       0.39
  53 57 53-70 25.5 19 34 62-70 CBH5-1       0.80
DCK5-CBH53-95 53 57 65-82 25.5 19 34 65-82 CBH5-2       0.80
  53 57 78-95 25.5 19 34 78-95 CBH5-3       0.80
  67.2 71 68-100 32.5 22 45.2 80-100 CBH6-1       1.75
DCK6-CBH68-150 67.2 71 94-126 32.5 22 45.2 94-126 CBH6-2 TCMT     1.75
  67.2 71 118-150 32.5 22 45.2 118-150 CBH6-3 110204     1.75
  67.2 71 100-153 45.5 22 45.2 112-153 CBH6-1 （标配  With ） M025W060 Q08 2.47
DCK6-CBH100-203 67.2 71 126-179 45.5 22 45.2 126-179 CBH6-2 TPGH M030W070   2.47
  67.2 71 150-203 45.5 22 45.2 150-203 CBH6-3 110304     2.47
  67.2 71 100-153 45.5 22 45.2 112-153 CBH6-1 （选配）     2.78
DCK7-CBH100-203 67.2 71 126-179 45.5 22 45.2 126-179 CBH6-2 （ For choice ）     2.78
  67.2 71 150-203 45.5 22 45.2 150-203 CBH6-3       2.78
適用Suitable:德克、京瓷或住友刀片DEREK、KYOCERA Or SUMITOMO Insert

特點/ Feature
■ 中心内冷。
■ With internal cooling supply.
■ 设动平衡结构，能达可靠加工精度。
■ With  balanced structure high machining precision accuracy promissed.
■ 标准相对反镗加工，加大附加值。
 ■ High cost effectiveness with back-boring function .
